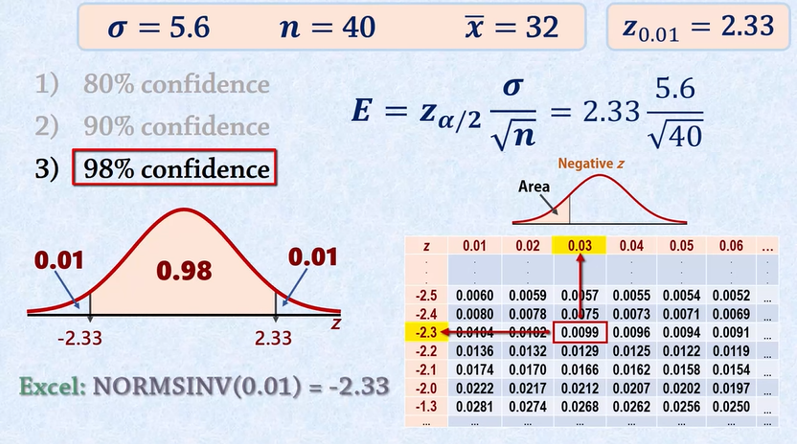

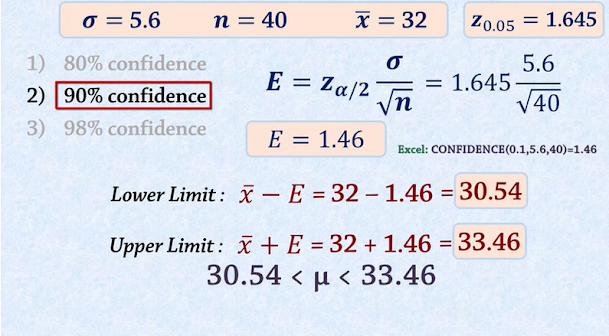

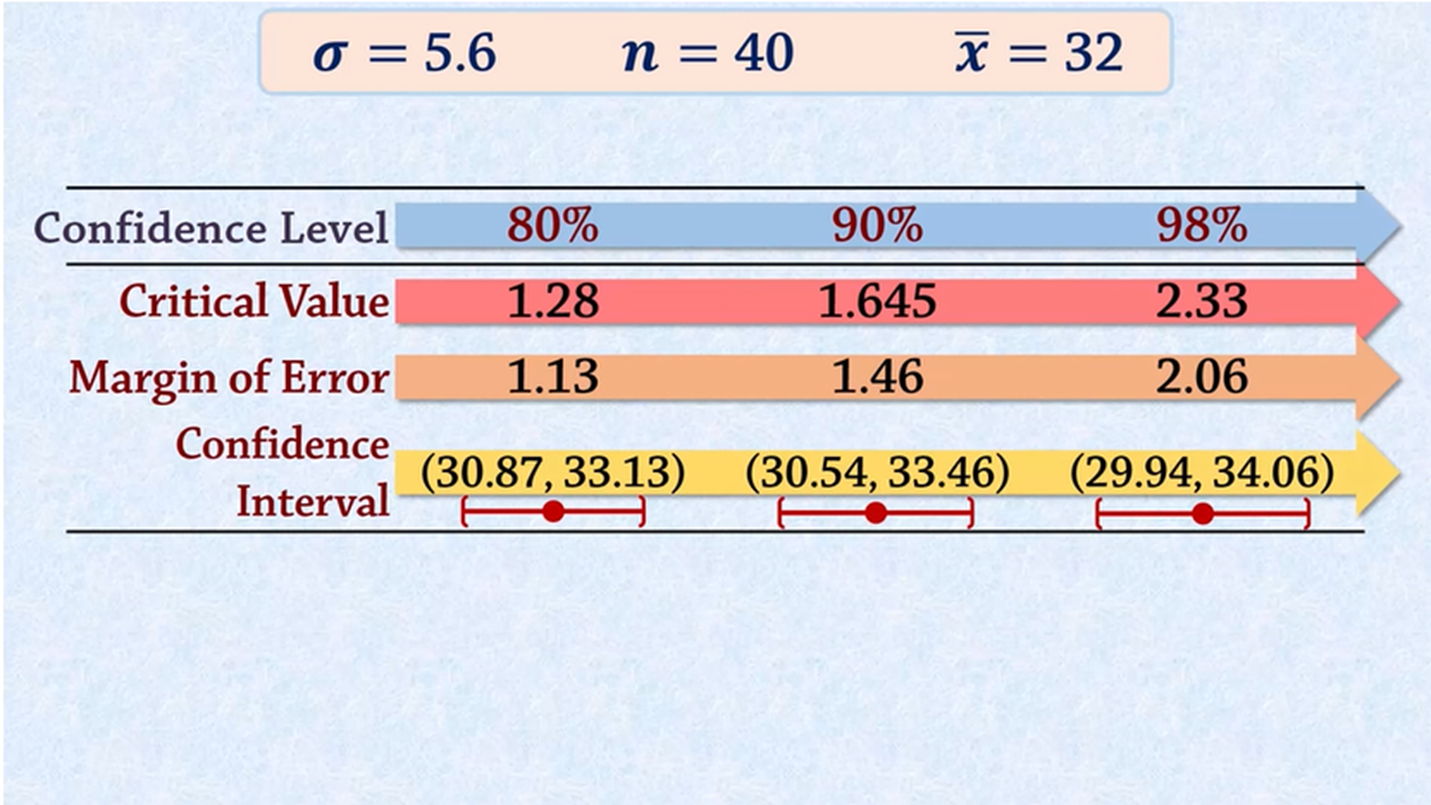

Confidence Interval for Population Mean, known std.dev.




The margin of error depends on the confidence level. Confidence level is often considered the probability that the calculated confidence interval estimate will contain the true population parameter.










Reference:
7.2 Confidence Intervals for a Single Population Mean with Known Population Standard Deviation – Introduction to Statistics (pressbooks.pub)
